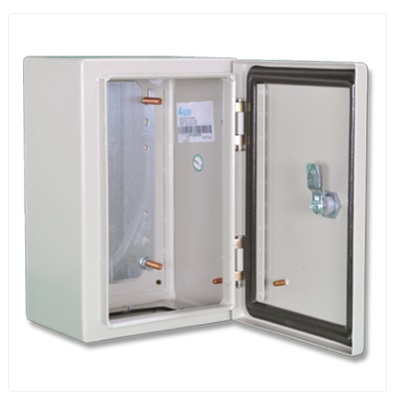

SINGLE DOOR ENCLOSURE

Specifications

• High quality electro-galvanized steel.
• Matt-finish polyester powder coating .
• Steel Thickness up to 1.5 mm.
• Removable gland plate at the bottom side.
• Corner formed door ensures better weatherproofing and gives aesthetic looks.
• Gasket on door ensures better sealing.
• Dimensions : From 200 x 200 mm To 2000 x 800 mm
• Depths : From 150 mm To 400 mm
• Ingress protection : IP65

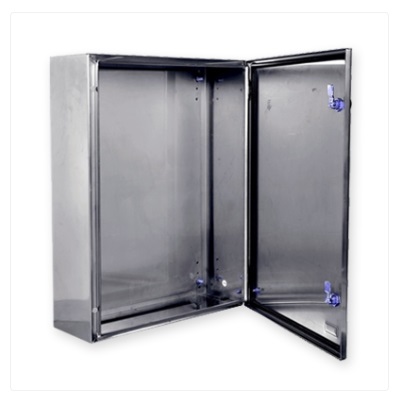

STAINLESS STEEL ENCLOSURE

Specifications

• Made of stainless steel up to 2mm thickness
• Stainless steel enclosure for IP66/NEMA-4X
• Specially made for use in highly corrosive environments, such as chemical or food industries and places where hygiene is necessary
• Highly polished Stainless steel
• Available in all sizes upon request

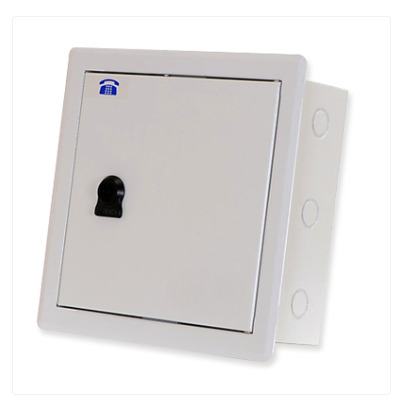

TELEPHONE BOX

Specifications

• Quality electro-galvanized steel
• Matt-finish polyester coated
• Thickness up to 1.2 mm
• Zinc-plated steel, removable mounting plate
• Door with CAM-type lock
• Available dimensions:
  230 x 230 x 100 mm. to 620 x 520 x 100 mm.
• Available connection pairs: From 40 to 420 Pairs

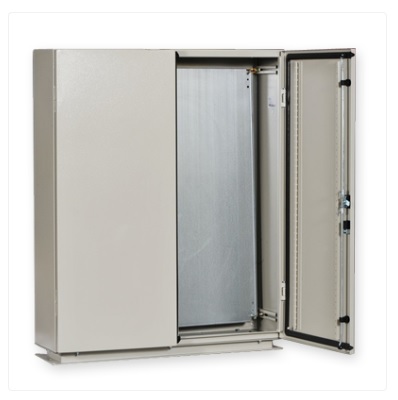

DOUBLE DOOR ENCLOSURE

Specifications

• High-quality electro-galvanized steel.
• Matt-finish polyester powder coated.
• Steel Thickness up to 1.5 mm.
• Corner-formed door ensures better weatherproofing and gives aesthetic looks.
• A gasket on the door ensures better sealing.
• Available dimensions:
  1000 x 1000 mm. to 2000 x 1200 mm.
• Depths: From 300 mm To 400 mm
• ingress protection: IP65

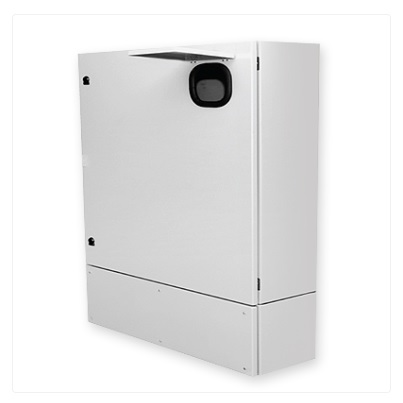

METERING ENCLOSURE

Specifications

• Made of EG steel of 1.5 mm thickness, polyester powder coated.
• Mounting plate made of GI steel sheet (2 mm thickness), powder coated.
• Meter viewing Perspex 150X150 mm (5 mm thickness)
• Perspex protection cover with hinges 200X200 mm
• Pad locking arrangement
• The gland box attached to the bottom

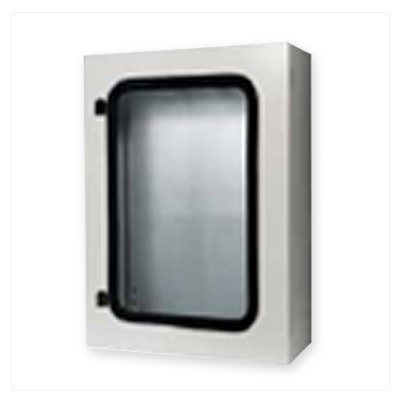

TRANSPARENT DOOR ENCLOSURE

Specifications

• The door frame is made of EG steel powder-coated
• UV-resistant, flame-retardant polycarbonate transparent door pane
• Transparent door pane suitable for outdoor applications
• Corner-formed door ensures better weatherproofing and gives aesthetic looks.
• A gasket on the door ensures better sealing.
• Dimensions:From 200×200 mm To 1800×800 mm
• Depths:From 150 mm To 400 mm
• Ingress protection : IP65
