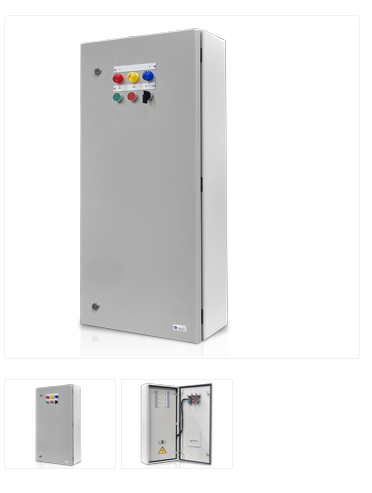

FINAL DISTRIBUTION BOARDS – ELETRA LD

The Eletra LD Final Distribution Boards are designed to distribute power safely and reliably in low-voltage electrical systems and ensure protection that is essential for electrical circuits and devices.

Specifications:

  • Compatible and type-tested in accordance with IEC 61439-1 & 3.
  • Rated current Available up to 250 A.
  • Fully insulated busbar system.
  • High Busbar short circuit withstand tested for 25KA.
  • Multi Outgoing feeders’ connections.
  • Optional metering (Ammeter and voltmeter) can be added separately with the metering kit above the panel board.
  • One solid piece of Earth & Neutral Brass Busbar
  • Available for indoor and outdoor applications, up to IP66.
  • Standard Color, RAL 7035 (other colors on request).
