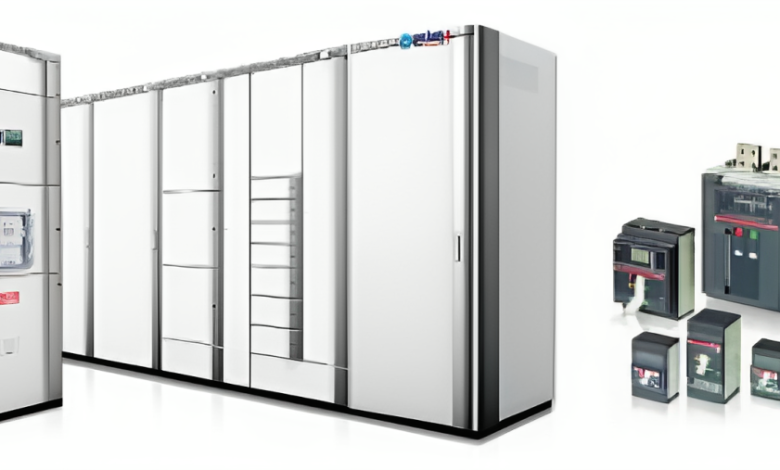

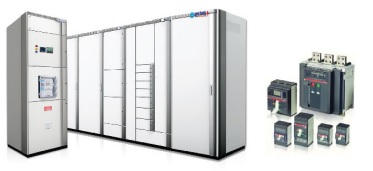

The Asian Gear main distribution boards are used to distribute and control the power supply in large buildings such as shopping malls, hospitals, universities, and hotels. The main distribution boards are generally installed after the primary power source (eg. transformers or generators) and used to divide the power feed into subsidiary outgoing feeders. 14/16SWG, Skeet steel fabricated, Powder Coated, floor mounting tropical design, indoor type low voltage switchgear for three-phase, four-wire, 50Hz, d40V AC system, and shell be supplied complete TPN+E Bus bar suitable sized and properly insulated arranged to withstand and short circuit current of 25-50kAfor 1 second. The Panel Boards are designed & constructed by [ECd39/BS5486. The bus bar and other live parts are spaced and by European Standards IEC158, VDE-C110 for 66DV. All Circuit Breaker units and Panelboards shall fully comply with the 15th SEE wiring regulation for isolation and switching.
Specifications
- Compatible and ASTA type tested by FEC 61439-1 & 2. Rated insulation voltage up to 1000V
- Main busbars up to 630DA
- Busbar short-circuit withstand capacity up to 1D0kA far 1 Sec / 65KA far 3 Sec
- Neutral busbars are rated up to 10096 of the main busbar and Earth busbars are rated up to 10096 of the neutral busbar
- Tested for Internal Arc Fault as per IEC 61641 up to 1D0kA (Classified as PSC assembly providing PERSONAL and ASSEMBLY protection under arcing conditions)
- Seismically tested up to 0.75g = 8.0 Richter scale. Farms of internal separation from Farm 1 to Form 4b Designed for Ambient temperature up to 50 °C.
